Product Specification Sheet:

Product Overview & Dimensions

• Product Name: JAZZ-A

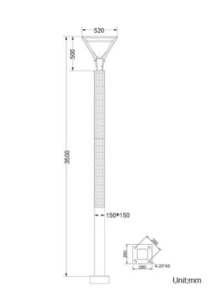

• Product Size (mm): 545 × 545 × 500

• Mounting Diameter: Ø76 mm

• Suggested Mounting Height: 3.5 m

• Finish: Powder Coating

Electrical & Optical Specifications

• Rated Power: 15W / 30W

• Luminous Efficacy: 110–150 lm/W

• Photovoltaic Panel: 18V × 160W

• Lithium Battery: 40Ah × 12.8V (LiFePO4)

• LED Chips: PHILIPS / TIANDIAN

• Color Temperature: 2700K–6500K (Adjustable)

• Beam Angle: 150° × 360°

• CRI (Color Rendering Index): ≥70 Ra

Performance & Endurance

• Lighting Time: 6–10 Hours

• Rainy Days Autonomy: 3 Days

• Working Temperature: -20°C ~ +55°C

Construction & Durability

• Housing Material: Die-cast Aluminum + Q235 Hot-Dip Galvanized Steel

• Lampshade Material: PC

• Sealing Material: Silicone Rubber

• Protection Grade: IP65

Warranty & Service

• Warranty: 3 / 5 Years (Optional)
