Product Specification Sheet –

• Product Name: CATHERINE

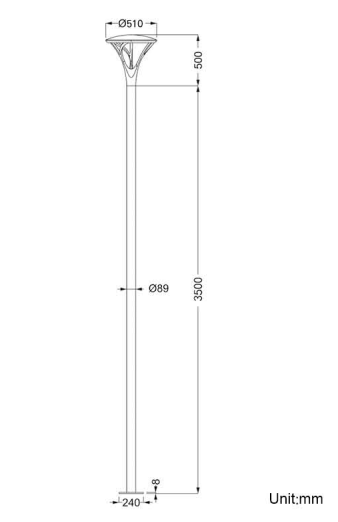

• Product Size (mm): φ520 X H500

• Net Weight: 6 ± 0.5 kg (Housing)

• Mounting Diameter: φ76mm

• Suggested Mounting Height: 3.5-4m

Electrical & Optical Specifications

• Rated Power: 30W/60W/90W (Multi-Wattage Options)

• Luminous Efficacy: 100-135 lm/W

• Supply Voltage Range: 100-277V AC

• Driver: MEAN WELL/INVENTRONICS/MOSO/DONE

• LED Chips: PHILIPS/CREE/OSRAM

• Color Temperature: 3000K/4000K/5000K/6000K

• Beam Angle: 150°×360°

• CRI: ≥70 Ra

• SPD: 5kV

Construction & Durability

• Housing Material: Die-cast Aluminum

• Lampshade Material: PC

• Sealing Material: Silicone Rubber

• Protection Grade: IP65

• Working Temperature: -30℃~+65℃

Warranty

• Warranty: 5 Years
