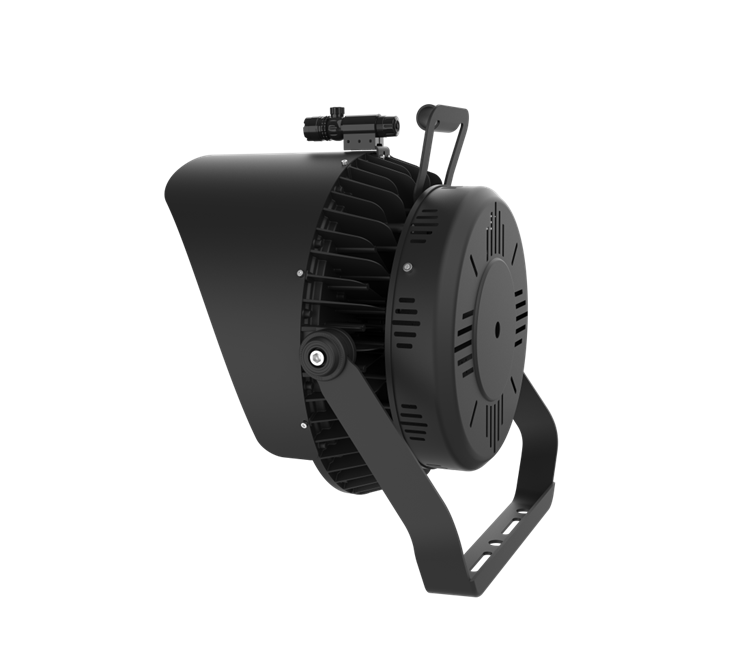

Model JR-1DCL-500W

Electrical & Thermal Specifications

• Power: 500W

• Operating Temperature: -30 ℃ to +45 ℃

• Ambient Temperature: 25 ℃

• LED Cathode Temperature: ≤85 ℃

Optical Specifications

• Beam Angle:

  • 15°/30°/60°/T2/T3/T4 (Lens Quantity: 33 pcs, LED Chip: 3030/5050)

  • 60°/90° (Lens Quantity: 3 pcs, LED Chip: 3030)

• Lens Material: Teijin 1250Z (Japan)

Mechanical & Construction

• Heatsink: Die-cast Aluminum ADC12

• Body Color: Black / Customized

• Product Dimensions: 478 × 473 × 406 mm

• Net Weight: 11.5 kg

Safety & Protection

• Protection Rating: IP66

• Impact Resistance: IK08

Compatibility & Packaging

• Driver Compatibility: All Brand Series Drivers

• Packaging Dimensions: 550 × 490 × 265 mm
