Model: JR-2DCL1-1200W

Electrical & Thermal Specifications

• Power: 1200-1360W

• Operating Temperature: -30 – +45℃

• Ambient Temperature: 25℃

• Cathode Temperature: ≤85℃

Optical Specifications

• Beam Angle: Refer to Optical Application Page for 15°/30°/60°/T2/T3/T4

• Lens Quantity: 80 pcs

• LED Chip: 3030/5050

• Lens Material: Teijin 1250Z (Japan)

Mechanical & Construction

• Heatsink: Die-cast aluminum ADC12

• Body Color: Black / Customized

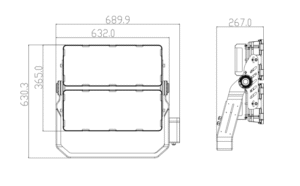

• Product Dimensions: 689.9 × 630.3 × 267 mm

• Net Weight: 26.8 kg

Safety & Protection

• Protection Rating: IP66

• Impact Resistance: IK08
